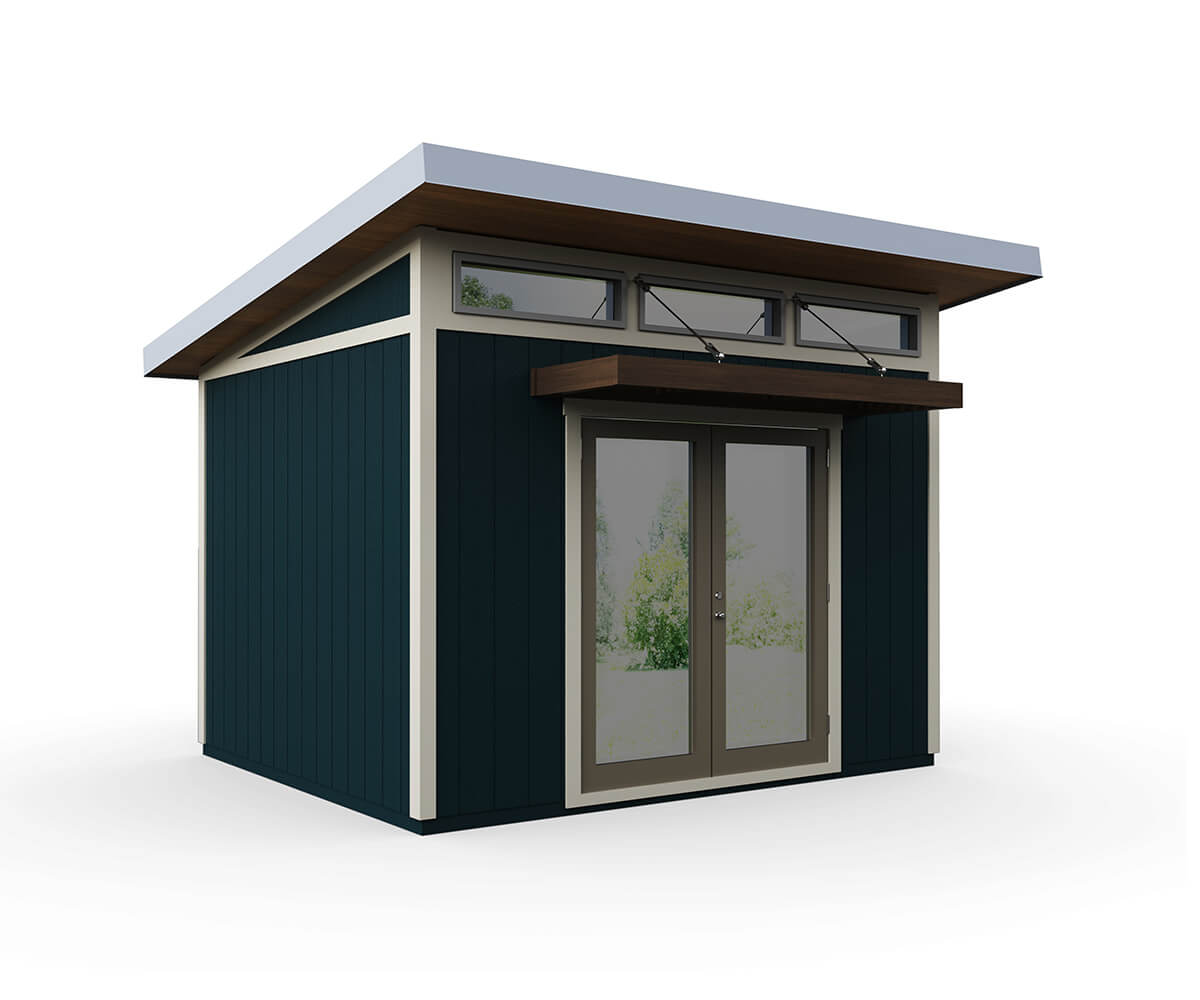

Flatiron 10x12 (120 SF)

Premium Storage Model

Product information


List price: $17,489 Save $2,920!

Heavy-duty rafters 2×6 and Galvalume roof system

72″ residential grade french doors

Integrated over door redwood pergola

Three transom windows

22 1/2″ x 60″ operable double-pane window

Brushed aluminum trim and pine board soffits

* Installation and shipping included. Not available in all areas.

** Includes paint package. Choose your paint and other options during your scheduling call.

Standard Features

Stylish doors provide sophistication and plenty of sunshine
Resists rot, decay and insects.
Factory primed & ready to paint
Stands up to strong wind and heavy snow loads
Built beyond industry standard to hold your heaviest equipment
Heavy-duty 2×6 rafters and galvanized steel roof system
Ready to be converted into a place for work & play

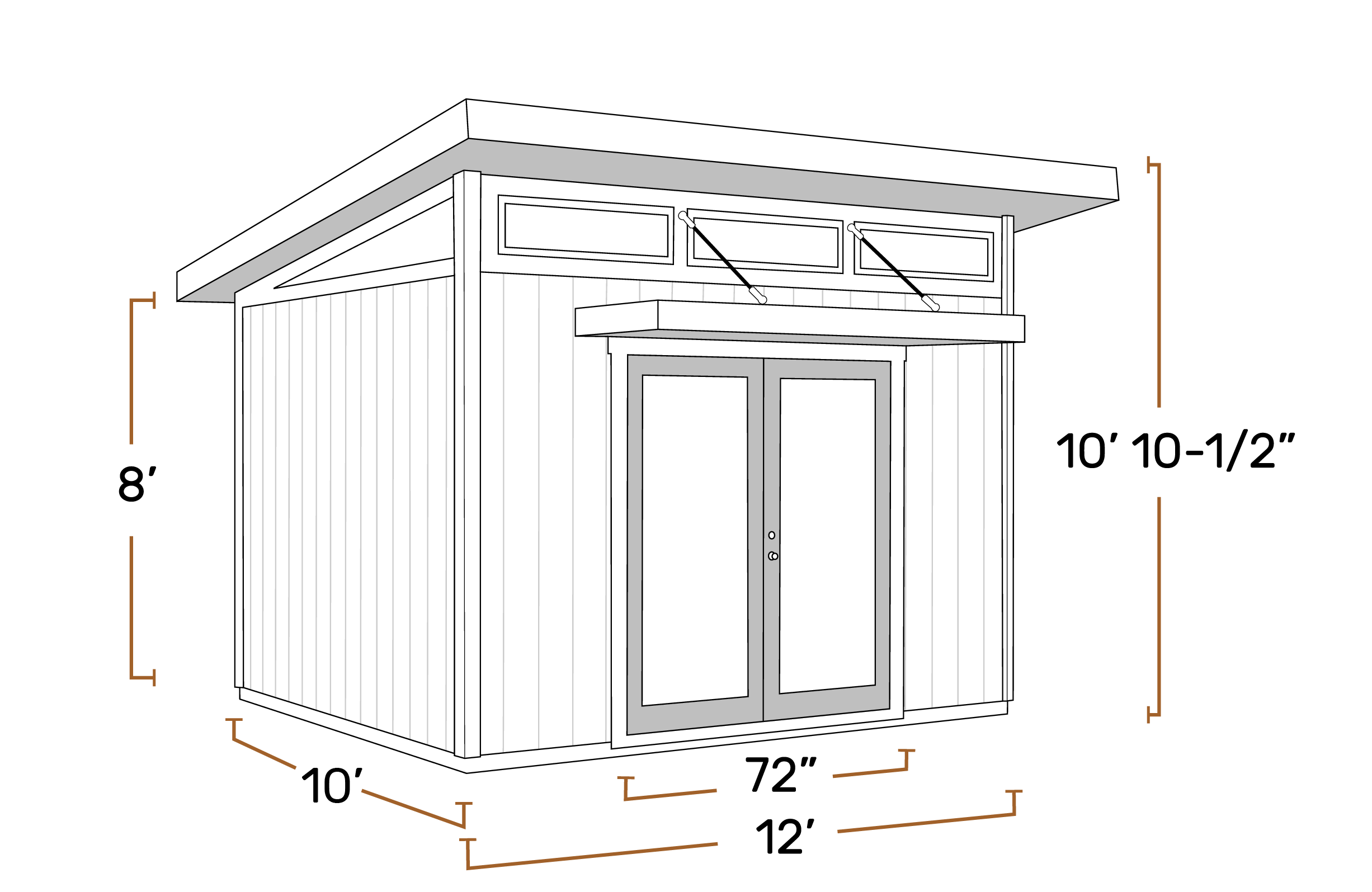

Flatiron 10x12 Specifications

Common size: 12' x 10' x 10' 10-1/2"
Cubic feet storage: 1,098
Square feet storage: 120
Sidewall height: 8'Back & 9' Front
Peak height: 10' 10-1/2"
Door opening: 71-1/2" W x 78-5/8"H
Window dimensions: 22.5" x 63"
Warranty: 10-year divmited warranty. 1-year labor warranty
Vents: Two vents
Type of floor: Heavy-duty treated floor
Floor joist spacing: 12"
Floor weight capacity: 52 lbs./sq. ft.
Aluminum threshold: included
Wall Framing: 2x4 construction
Stud spacing: 24"
Number of rafters: 8
Rafter spacing: 16"
Drip Edge: included
Roof pitch: 2/12
Overhang length (Front): 23-1/8"
Overhang length (Sides): 11-5/8"
Max roof load: 30 lbs. per sq. ft.
Max wind resistance: 90 m.p.h.
Type of door handle: Chrome locking handle
Type of Door Hinges: Mortised into pre-hung doors
Assembled weight: 2,101 lbs.
Siding: Siding is primed and ready to paint (paint sold separately)
Paint & Caulk: Trim: 2 qt.. | Siding: 3 gal. | Caulk: 3 tubes
Roof system: Heavy-duty 2×6 rafters and galvanized steel roof system
Studio Shed 3D design center app

Make Your Escape

Design Your Studio Shed

One shed does not fit all. Our innovative prefab solution is a flat-packed, panelized kits of parts with hundreds of customizations in the Design Center. There are millions of combinations of sizes, door and window placements, and colors. All thoughtfully designed to work together.
